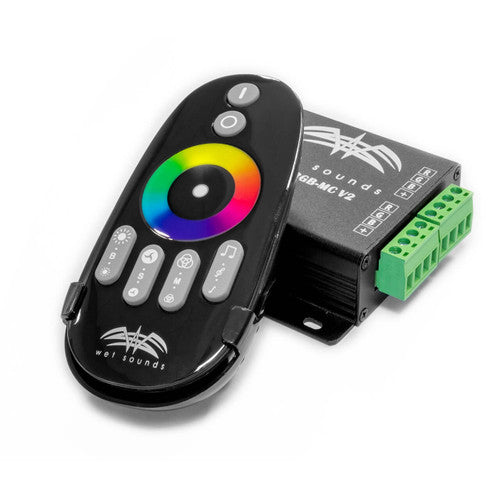

RF-RGB-MC V2 | Wet Sounds RF RGB Music Controller W/ Touch Activated Remote

Take control of your Wet Sounds LED speakers with the RF RGB Music Controller w/ Touch Activated Remote. With the Wet Sounds RF-RGB-MC V2 you can run up to 10 meters (38ft.) of led strips without a doubt. This handy remote controls your LED speakers using the most advanced PWM (pulse width modulation) remote control technology. You can choose your favorite accent color, or explore five multi-light color change modes or three music modes — you can set the mood or set the lights to react to the beat of the music. All in all, you'll find thousands of different color combinations available.

• Power: on
• Power: off
• Color Wheel: choose color with touch sensitive color wheel
• Brightness: rocker switch
• Speed: rocker switch; change the speed at which the colors change in multi-color mode
• Multi-Color: rocker switch; change between the six color modes
  • Mode 1: static mode (not blinking); choose one of the seven colors (white, cyan, purple, yellow, blue, green, or red)
  • Mode 2: blinks (sharply) between all seven colors
  • Mode 3: fades gradually between red, green, and blue
  • Mode 4: fades gradually between all seven colors
  • Mode 5: single color blink; choose one of the seven colors
  • Mode 6: two color blink; choose blue and green, blue and red, or red and green
• Music: rocker switch; change between the five music control modes; each varies with the beat of the music connected to the line input
  • Mode 1: choose any one of the seven colors to blink (sharply) with the music (white, cyan, purple, yellow, blue, green, or red)
  • Mode 2: quickly fades between all seven colors
  • Mode 3: gradual fading between all seven colors
  • Mode 4: red hopping, green hopping, or blue hopping
  • Mode 5: two color mix; choose blue and green, blue and red, or red and green
• Sensitivity: rotary knob on receiver unit; adjusts sensitivity to the music input

Connections (receiver):

• Power/Ground: the removable set screw terminal accepts power and ground wires up to 14-gauge
• RGB Output: there are two removable RGB output set screw terminals; each accepts bare wire up to 14-gauge
• Line Input: the 3.5mm stereo mini-jack input allows integrating the lights with the beat of the music
